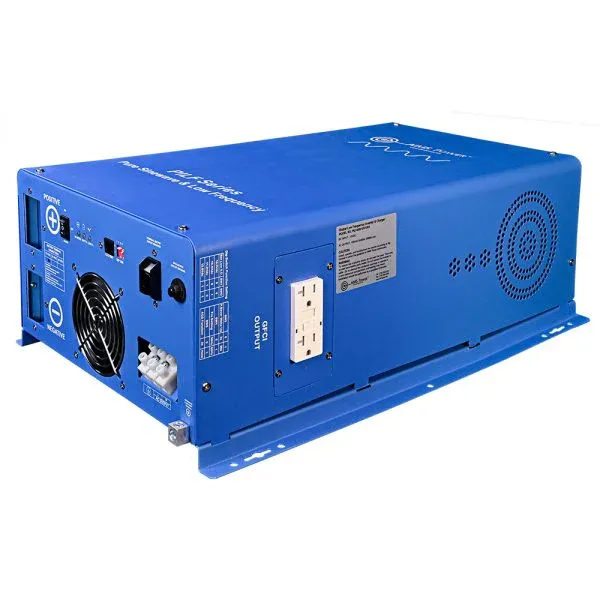

Aims Power 3000 Watt 12V Pure Sine Inverter ETL Listed to UL458/CSA- Industrial Grade
Description
Industrial Grade 3000W Low Frequency Power Inverter: Clean, Stable Power for Your Most Demanding Applications
Experience uncompromising power reliability with the AIMS Power 3000W Pure Sine Power Inverter. Engineered to deliver true 120VAC power with a true neutral – virtually identical to grid power.
Engineered for demanding environments, this inverter delivers a massive 9,000-watt surge capacity for 20 seconds, ensuring reliable startup for heavy-duty equipment. Advanced DSP (Digital Signal Processing) technology maintains consistent performance and stable output voltage—even as battery levels drop—making it ideal for sensitive electronics, power tools and appliances. Built tough for rugged conditions, it features an intelligent 3-step controlled fan for efficient cooling, dual GFCI outlets for added safety, and an optional LCD remote panel for convenient monitoring.
Ideal for professional-grade applications:
- Utility and service trucks requiring grid-quality power
- Mobile workshops, food trucks, and field service vehicles
- Off-grid homes, cabins, and emergency backup systems
- Remote construction sites and solar/battery backup installations
Features:
- 3000W – 25 Amps Continuous Power – Handles demanding loads with ease
- 9,000W Surge Capacity – Powers high-startup equipment for 20 seconds
- ETL Listed Conforms to UL458 Standards & CSA
- Pure Sine Wave Output – Clean power safe for most devices
- Single GFCI Duplex receptacle – Enhanced safety protection
- Hard wire terminal for full output capacity
- DSP Technology – Advanced digital signal processing for optimal performance
- Harsh Environment Ready – Built to withstand tough conditions
- 3-Step Controlled Fan – Quiet operation with efficient cooling
- Voltage Regulation – Stable output regardless of battery voltage fluctuations
- Optional LCD display for convenient monitoring-REMOTELF
- Power Save Mode – Energy conservation when no load present
- Overload protection
- Low and high voltage protection
- Short circuit protection
- Low and high temperature protection
- Conformal coated
- 50Hz & 60Hz
- 2 Year Warranty
- Lifetime Tech support
Product Specifications
Aims Power 3000 Watt 12V Pure Sine Inverter ETL Listed to UL458/CSA- Industrial Grade Product Specifications
| Specification | Value |
|---|---|
| Continuous Power | 3000W |
| Surge Rating | 9000W |
| Capable of Electric Motor | 3.0 HP |
| Output Waveform | Pure Sine Wave |
| Nominal Efficiency | Up to 88% |
| Power Factor | 0.9–1.0 |
| Nominal Output Voltage | 120Vac |
| Output Voltage Regulation | ±10% |
| Output Frequency | 50/60Hz ±0.3Hz |
| Short Circuit Protection | Yes |
| THD | <3% typical |
| DC Input Voltage | 12.0Vdc |
| Minimum Start Voltage | 10.0Vdc |
| Low Battery Alarm | 10.5–12.5 Vdc |
| Low Battery Trip | 10.0–12.0 Vdc |
| High Voltage Alarm | ≥16.0Vdc |
| Recovery Voltage | ≤15.5Vdc |
| Low Battery Recovery | ≥13.0Vdc |
| Idle Consumption | <2.5W |
| Remote Control | Optional |
| Display | Tri-Color LEDs |
| Mounting | Wall or flat |
| Inverter Weight | 57 lbs |
| Shipping Weight | 68 lbs |
| Size | 19 × 13.75 × 7.25 in |
| Shipping Size | 24 × 18 × 12 |
Product Manual
AIMS PILF MAN 071725
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
