Aims Power Golf Cart 200AH Lithium Battery 48V 10.2 kWh with Charger and Wiring Kit
Description
Upgrade Your Golf Cart with Our Cutting-Edge 48V 200Ah Lithium Battery!
Why Your Golf Cart Needs This:
- Powerful Performance:Delivers 10.2 kWh of energy, replacing most lead-acid batteries as a drop-in replacement. Delivers full amp capacity and no memory problems.
- Enhanced Capability:Struggling with extra cart weight or course incline? No problem! With 650A/31.2 kW surge power for 10 seconds, maximize your speed effortlessly, and with a built in heater, you can charge in lower temperatures.
- Efficiency:Enjoy the same run time as multiple batteries, but with just one battery at half the weight.
- Longevity:Boasts 8x more charging cycles than lead batteries, significantly reducing installation and replacement costs.
- Peace of Mind:Backed by a lifetime prorated warranty (<3500 cycles) for safe, reliable, and powerful performance.
Why AIMS Power? Transparency and accuracy are at the core of our product specifications. When it comes to lithium batteries, we ensure our stated amp hour capacity and weight accurately reflect the high-quality materials and components used in our products. While lithium batteries are indeed lighter than traditional battery technologies, there is a lithium density threshold required to achieve full amp hour capacity. We encourage customers to verify product specifications carefully, as discrepancies in weight may indicate a compromise in performance or capacity.

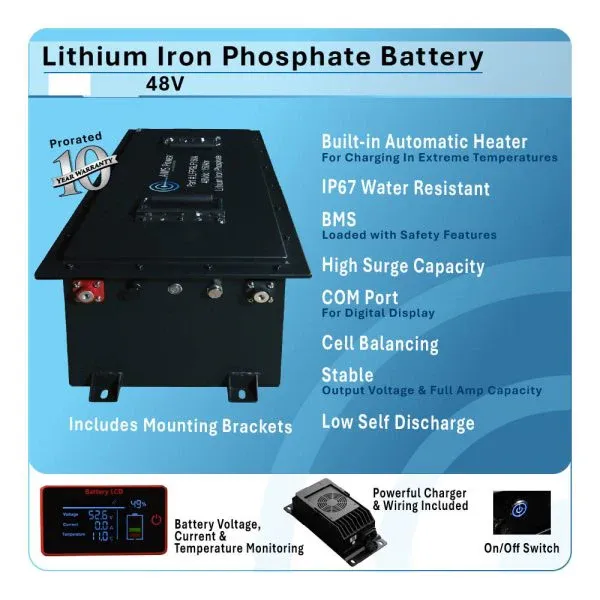

Features:
- Backed by alifetimeprorated warranty (<3500 cycles) for safe, reliable, and powerful performance.
- Built in heater for charging in extreme temperatures
- Stable output voltage & full amp capacity
- Low maintenance
- BMS loaded with safety features
- Cell balancing
- Battery voltage monitoring
- Battery current monitoring
- Low self discharge
- On/off power switch
- IP67 water resistant
- IEC62619/CE61000/GBT36276/ROHS/UN38.3/UL1973/UL1642
- Battery temperature monitoring (integrated temperature sensor in BMS)
- COM port for digital display – 11FT cable
- High surge capacity
- Includes powerful charger and wiring kit
Product Specifications
Aims Power Golf Cart 200AH Lithium Battery 48V 10.2 kWh with Charger and Wiring Kit Product Specifications
| Model # | LFPGLF200A |
| Nominal Voltage | (48V)51.2V |
| Capacity (Ah) | 200Ah |
| Battery Energy | 10240Wh |
| Self Discharge | ≤3% per month at 25̊ C |
| Cycle Life | >4000 cycles |
| Charge Mode | CC/CV |
| Charge Cut-off Voltage | 58.4V |
| Recommended Charge | 20A-50A |
| Max Continuous Charge | 100A |
| Max Continuous Discharge | 300A |
| Max Pulse Current | 650A/10S |
| Discharge Cut-off Voltage | 35.2V |
| Storage Temperature | 0~45̊ C |
| Working Environment | 0̊ C~+55̊ C (Charge) |
| (-)20̊ C~+65̊ C (Discharge) | |
| Charge Low Temp Protection | (-)10̊ C | 14̊ F |
| Charge Low Temp Protection Release | 0̊ C | 32̊ F |
| Charge High Temp Protection Alarm | 65̊ C | 149̊ F 60̊ C | 140̊ F |
| Charge High Temp Protection Release | 45̊ C | 113̊ F |
| Housing Material | Powder Coated Seal |
| LCD display | Yes |
| Dimensions (L*W*H (IN)) | 31.5*16.125*9 |
| WEIGHT | 216 Shipped |
| 182 Unit | |
| Certifications | IEC62619/CE61000/GBT36276/ROHS/UN38.3/UL1973/UL1642 |
Product Manual
Aims Power Golf Cart Battery Flyer Specs 09252025
Aims Power Golf Cart BatteryManual 092724
Product Warranty
AIMS Power offers a one year warranty with all products. Follow the link below to register your product warranty:
https://www.aimscorp.net/product_registration.php
